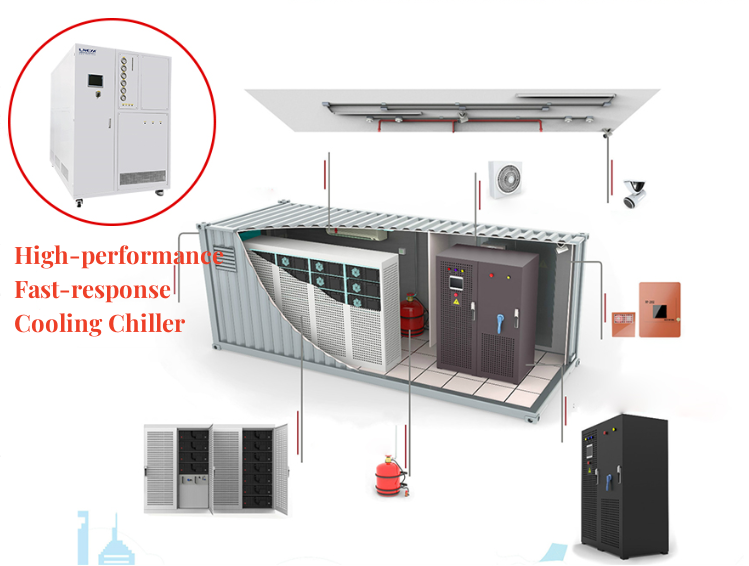

Liquid Cooling Chiller（Commercial Energy Storage）

Cabinet Internal Ambient Temperature Thermal Management System

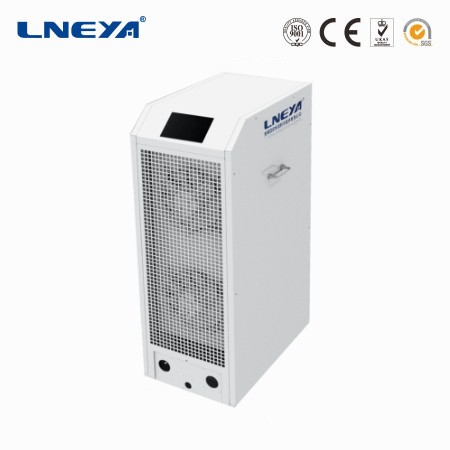

CNYL 5kW&8.5kW

Liquid Cooling Chiller Vechicle Thermal Management System

Temperture accuracy±0.5℃
Control SystemPLC
Power range2.2kW 3.5kW

energy storage chiller liquid cooling chiller

Consultation Price

Description

Parameters

Quotation

Efficient “nanny-style” temperature control and intelligent linkage with battery temperature

Ambient operating temperature range -45°C~55°C

Can be used below 3000 meters above sea level

Protection above IP50 can meet anti-corrosion requirements

Intelligent, multilingual color touch screen provides clear and comprehensive important data information

Real-time display of flow pressure data

Fully enclosed design of ethylene glycol antifreeze circulation system

Using compressor heating to prevent condenser frosting technology, the system has no PTC heater

Real-time operation and maintenance management of equipment through the Internet of Things platform

Suitable for single high current liquid cooling test：

Complement the existing liquid cooling circulation channel, single channel, air cooling

Applicable to energy storage modules, energy storage sub-box performance test

Suitable for performance testing of vehicle power supply products

Applicable to vehicle power supply large module, energy storage module, energy storage plug-in box test, suitable for vehicle power supply product performance test

Applicable to energy storage modules, energy storage sub-box performance test

Applicable to cycle test, the cooling method is liquid cooling mode

Applicable to vehicle power supply, energy storage system test

Suitable for performance testing, the cooling method is liquid cooling mode

Applicable to vehicle power supply, energy storage system test

Suitable for performance testing of vehicle power supply products

Suitable for performance testing of R&D projects, prepared for cylindrical/other direct cooling projects

Model	CNYL-5	CNYL-8.5
Refrigeration capacity	5KW	8.5KW
Temp control accuracy	±0.5℃ real-time temperature record
Brine	Ethylene glycol antifreeze, fully enclosed design of refrigerant circulation system
Flow	Less than 0.3bar at 30L/min Frequency conversion adjustable	Less than 0.3bar at 20L/min Setting display record
Water inlet temperature Min	15°C (can be customized according to the battery system)	13°C (can be customized according to the battery system)
System pressure sensor detection	Liquid outlet pressure, liquid inlet pressure, refrigeration system high and low pressure
Temperature sensor detection	Liquid outlet temperature, liquid inlet temperature, refrigeration system exhaust and suction temperature, condensation temperature
Expansion tank level	Liquid level sensor real-time monitoring
Heating	Using compressor heating to prevent condenser frosting technology, the system has no PTC heater
System energy consumption display	The system has real-time energy consumption and cycle cumulative energy consumption display
COP	*2.0	*2.2
Compressor	Hermetic compressor (1 set)	34cm3 /rev hermetic scroll compressor (1 set)
Refrigerant	R410A
Condensing air cooling	2000m³/h(100Pa wind pressure)	2500m³/h(100Pa wind pressure)
Condenser	microchannel heat exchanger
Evaporator	Plate heat exchanger
Cooling throttling	Electronic expansion valve
Low voltage electrical	Schneider/Siemens
Display	7 inch color touch screen
Control System	PLC
Communication	CAN
Internet	Real-time operation and maintenance management of equipment through the Internet of Things platform
Ambient operating temperature	-45℃~55℃
Safety Protection	With self-diagnosis function, phase sequence and phase failure protection, safety voltage protection, flow abnormality protection, refrigeration system high and low pressure protection, exhaust and suction temperature protection, high and low liquid level protection, and circulation pipeline pressure abnormality protection
Power	220V 50HZ	380V 50HZ can choose DC1050V-625V
Control voltage range	18-32V
Refrigeration high pressure power Max	2.5kW	3.5KW
Refrigeration average input electric power (kW)	+1.5kw adjustable frequency	+2kw adjustable frequency

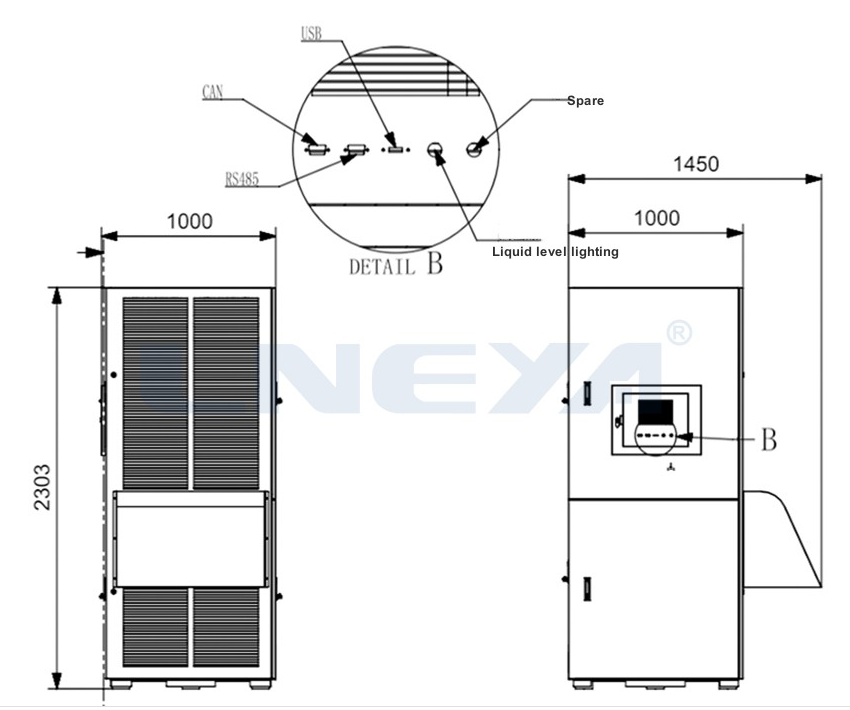

Equipment size mm	L560W340960mm
Shell material	Cold-rolled plate spray REL7035
