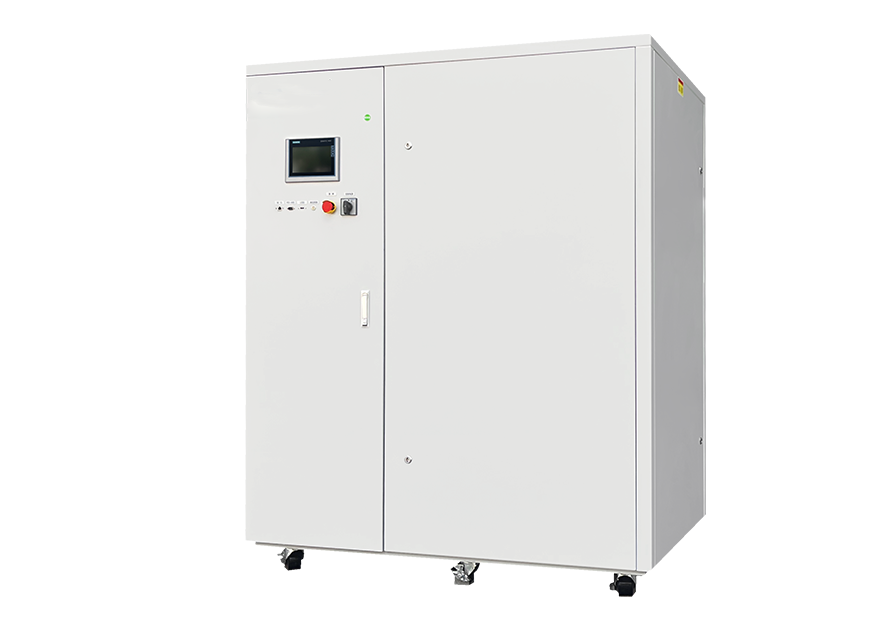

Normal Temperature Water/Oil Chiller
LT 5℃~50℃
- Cooling Capacity±0.1℃
- Cooling Power1.8kW~60kW
- RefrigerantR-407C
- Flow Pressure25L/min 1bar~250L/min 2.5bar
- Power Supply1.5-17kW
- Weight115kG~800kG
Used for Chemical Reaction, Semiconductor, Laster, Tool machine processing ,CNC and other processes…
NORMAL COOLING WATER CHILLER
Temperature Range 5°C~50°C
An economical and environmentally friendly alternative to circulating cooling water
The temperature of the heat transfer liquid can be adjusted;
It adopts international famous brand compressors such as Aspara, Danfoss, Meiyoule and Copeland, and has stable performance and can work continuously;
User-friendly design, flexible and convenient;
Microcomputer temperature controller, temperature digital display, adjustment unit 0.1 degree, temperature range -5 ℃ to 35 ℃;
Use hot gas bypass to save energy and improve control accuracy;
Multiple fault alarms (over temperature alarm, sensor alarm, high pressure alarm, compressor overheat alarm);
Boot delay protection; all components are safely grounded;
The high performance circulation pump is guaranteed to run 24 hours a day.
| Model | FL-0250 | FL-0500 | FL-0700 | FL-1000 | FL-1500 | FL-2000 | FL-2600 | FL-3500 | FL-5000 | |
| Medium Temperature Range | Standard FL series temperature range 5℃～35℃ only with cooling function | |||||||||
| Temp. Control | ASET multifunctional controller, control temperature of water tank / PLC controller, control temperature of water tank | |||||||||
| Tem. Feedback | Temperature feedback PT100 | |||||||||
| Cooling Capacity | 20℃ | 2.5kw | 5kw | 7kw | 10kw | 15kw | 20kw | 26kw | 35kw | 50kw |
| 10℃ | 1.8kw | 3.6kw | 5kw | 7.2kw | 11kw | 14.5kw | 18.5kw | 25.2kw | 36kw | |
| Circulation pump flow, pressure | 25L/min 2BAR |
35L/min 2.5BAR |
35L/min 2.5BAR |
50L/min 2.5BAR |
75L/min 2.5BAR |
75L/min 2.5BAR |
110L/min 2.5BAR |
200L/min 2.5BAR |
250L/min 2.5BAR |
|
| Compressor | Mitsubishi | Emerson Copeland | ||||||||
| Evaporator | Copper tube nickel plating | |||||||||
| Operation panel | Display set temperature and measured temperature, touch key to operate input temperature | |||||||||
| Safety Protection | Self-diagnosis function; freezer overload protection; high pressure switch;overload relay, thermal protection device etc. security protection function. | |||||||||
| Refrigerant | R407C | |||||||||
| Connection Size | ZG1/2 | ZG3/4 | ZG3/4 | ZG3/4 | ZG1 | ZG1 | ZG1 1/4 | DN40 PN10 | DN40 PN10 | |
| Product size（mm) | 40*70*130 | 45*700*160 | 45*70*160 | 55*70*175 | 65*85*185 | 70*85*185 | 80*120*200 | 100*150*205 | 145*245*225 | |
| Weight | 115KG | 145kg | 180kg | 225kg | 290kg | 340kg | 400KG | 560KG | 800KG | |
| Power (max) 50HZ |
AC220V 1.5kW |
AC220V 2.2kW |
AC220V 3kW |
AC380V 4kW |
AC380V 5kW |
AC380V 6kW |
AC380V 8kW |
AC380V 12kW |
AC380V 17kW |
|
| Shell Material | Cold rolled steel painting | |||||||||
| Optional | 7-inch color touch screen, temperature curve record, data export excel-format | |||||||||
| Optional | SUS304 Material | |||||||||
| Optional Power | 220V 60HZ three-phases，440V～480V 60HZ three-phases | |||||||||
Working Principle
1、Compressor
2、Condenser
3、Expansion Valve
4、Evaporator
5、Circulating Pump
6、Forzen Water Outlet
7、Forzen Water Inlet
The entire working principle process can be roughly divided into three parts: water circulation system, refrigeration cycle system and main control system. The water circulation system is also a part that directly reflects the function of the industrial chiller. It transfers cold water to the equipment that needs cooling, the cold water absorbs the heat from the equipment and then transfers it back. The refrigeration cycle system is the process of cooling cold water that absorbs heat. The refrigerant sublimates and then compresses, carrying the heat in the cold water outside for dissipation. The main control system is part of the power control and internal structural component control.
Applications
For Hydraulic casting machine
For Water tank
For Semiconductor company
- Plastic Industry: Precisely control the temperature of various plastic granulation molds, reduce beer forming cycle time, and ensure stable product quality.
- Electronic Industry: Stabilize the molecular formula of electronic components in production lines, improve the standard rate of electronic components, apply in the field of ultrasonic cleaning, and reasonably avoid the damage caused by expensive detergent evaporation and evaporation.
- Electroplating Field: Controlling electroplating temperature, improving the relative density and smoothness of electroplated parts, shortening electroplating cycles, improving productivity, and improving product quality.
- Mechanical Engineering: Control the working pressure and oil temperature of the steam pressure system software, stabilize the water temperature and steam pressure, increase the use time of oil, improve the lubrication efficiency of mechanical equipment, and reduce wear.
- Engineering Construction Industrial production: providing frozen water for concrete, making the molecular formula of concrete suitable for the main purpose of engineering construction, and reasonably improving the strength and ductility of concrete.
- Vacuum Coating: Control the temperature of the vacuum coating machine to ensure the high quality of the plated parts.
- Chemical and Pharmaceutical industries: In the medical industry, the key is to control the temperature of hair alcohol drugs. Pharmaceutical manufacturing enterprises should flexibly use chiller equipment, fully leverage its advantages, strengthen technological innovation, improve the cost-effectiveness of chillers, and better serve projects in the pharmaceutical industry.
- Laser Industry: used for laser marking machines, laser engraving machines, laser welding machines, laser inkjet printers, laser cutting machines and other laser processing equipment, accurately controlling the temperature required by laser equipment to ensure the normal operation of laser equipment.
Chiller can be indoor or outdoor, and even customized explosion-proof type
Can be integrated into the client’s production system equipment.
Indoor chiller type
Outdoor chiller type
