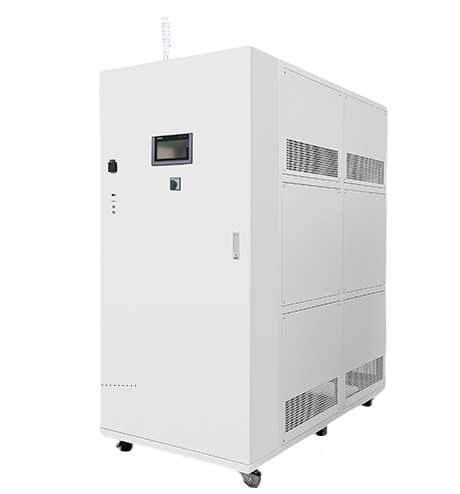

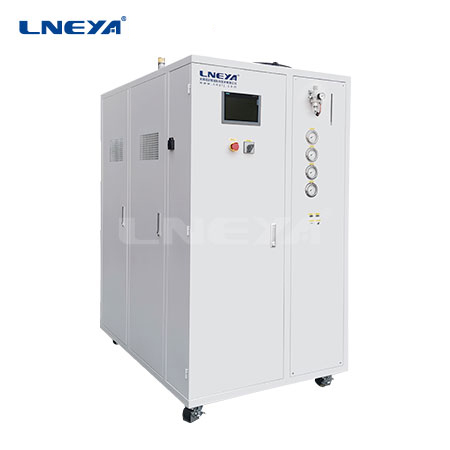

Control Temperature Flow Cooling Heating System for Vehicle Battery Test

KRY -40℃~100℃ 1&6S

Low Temp Vehicle Test Chiller Vechicle Thermal Management System

Heating Power15kW~38kW
Cooling capacity10kW~60kW
Power range36kW~8kW
Temperature accuracy±0.5℃
Flow rate output1～40 L/min
RefrigerantR404A/R507C
Weight250KG~1300KG

kry -40-100 vehicle thermal management

Consultation Price

Description

Parameters

Quotation

Temperature control in the testing process of new energy vehicle components

temperature control, flow control

The components are cooled and heated internally through ethylene glycol aqueous solution for testing

-40 ° C~100 ° C (expandable to 150 ° C)

Product’s Description

For the power battery charging management, the precision temperature control device for testing the permanent magnet synchronous motor, the switched reluctance motor, the asynchronous motor and its controller can realize the local + remote control mode through the liquid crystal controller panel;

With automatic fault protection function, it can output corresponding signals to ensure the safety of equipment. The main parts are all international brands, quality assurance, high-pressure electrostatic spray treatment on the surface, and auxiliary equipment can be added according to specific needs.

General equipment

Multichannel equipment

Multi channel independent temperature control

The system adopts LNEYA PLC control, with simple menu navigation, a 7 inch color large screen, and comprehensive and multifunctional image display of important data information. The newly added safety measures ensure continuous unmanned operation. All relevant operating status data is continuously monitored and visualized on the touch screen. It supports independent control of one to many channels, and each group can be set independently.

Variable frequency regulation

The variable frequency pump can adjust the circulating liquid pressure and flow rate, achieving high-precision control of 5%~100% of the total range adjustment.

Client A

Client B

By using a variable frequency pump, the motor speed can be controlled at the appropriate value corresponding to the required pressure.

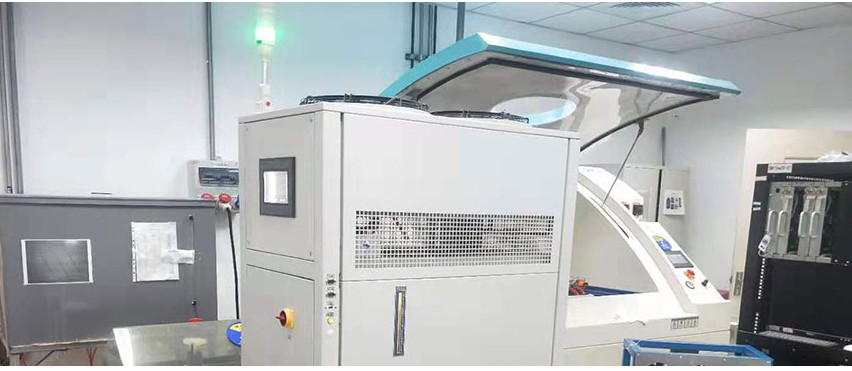

Temperature simulation for vehicle quality test: battery life test, fuel injector/motor test bench, airbag test, component test bench, etc. It can simulate the external environmental conditions in the climate chamber or replace the internal system, which can create the necessary actual temperature conditions for the test bench.

Motor and motor controller

Motor coroller durabilitytest, motor and motorcontroller bracket

Charge point test

On load charging experiment and charging communication interactive test

OBC/DC-DC

Model test, power test. Durability test

Power battery system

Battery pack charge and discharge test, fuel cell test

Model	Synbol Unit	KRY-4A25W/6S	KRY-4A38W/6S	KRY-4A60W/6S
Temp Range	℃	-40℃～+100℃
Flow rate output	L/min	1～20	1～20	1～40
Flow rate accuracy	L/min	±0.2
Heating power	kW	15	25	38
Cooling Capacity	100℃	25kW	38kW	60kW
	200℃	25kW	38kW	60kW
	0℃	25kW	38kW	60kW
	-35℃	5kW	8kW	13kW
Refrigerant		R404A/R507C/R125/N40
Power 380V50HZ	kW max	38	55	82
Dimension(W) cm
Dimension	(A) cm	120180205	145205225	145205225
Weight (water cooling)	KG	900	1200	1950

Control Mode	Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control	Process temp. control and jacket temp. control model
Temp. difference	Set or control the temperature difference between jacket oil and raw material process
Program Editor	10 programs, each program can edit 40 steps
Communication Portocol	MODBUS RTU Protocol, RS485 interface
Material temp. feedback	PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback	The temp. of three points: the inlet and outlet of equipment,reactor material temp.(external temp. sensor)
Expansion valve	Emerson thermal expansion valve/danfoss thermal expansion valve
Evaporator	DANFOSS/KAORI Plate heat exchanger
Operation Panel	7-inch touch screen，show temp curve\EXCEL data output
Safety protection	Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system	The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant	R404A/R507C/R125/N40 All four refrigerants are available
