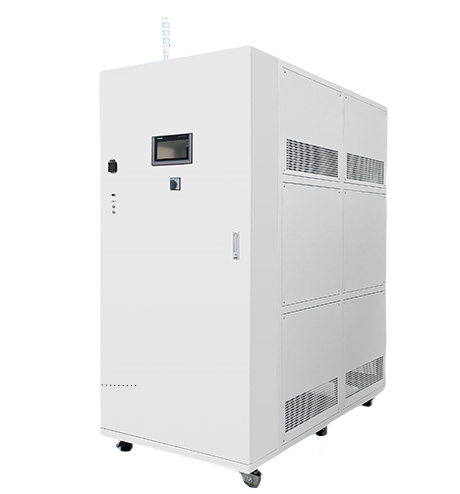

Vehicle Antifreeze Test Temperature Simulation Chiller
KRY -40℃~100℃ 1&2S- Heating Power10kW~38kW
- Cooling capacity2.5kW~60kW
- Power range17kW~81kW
- Temperature accuracy±0.5℃
- Flow rate output1～40 L/min
- RefrigerantR404A/R507C/R125/N40
- Weight360KG~1750KG
CAN BE CONTROL TEMPERATURE AND FLOW
Temperature control in the testing process of new energy vehicle components
Refrigeration, heating, temperature control, flow control
Connect the tested object to a testing platform adapter
The components are cooled and heated internally through ethylene glycol aqueous solution for testing.
-40 ℃~100 ℃ (can be extended to 150 ° C)
Product’s Description
For the power battery charging management, the precision temperature control device for testing the permanent magnet synchronous motor, the switched reluctance motor, the asynchronous motor and its controller can realize the local + remote control mode through the liquid crystal controller panel;
With automatic fault protection function, it can output corresponding signals to ensure the safety of equipment. The main parts are all international brands, quality assurance, high-pressure electrostatic spray treatment on the surface, and auxiliary equipment can be added according to specific needs.

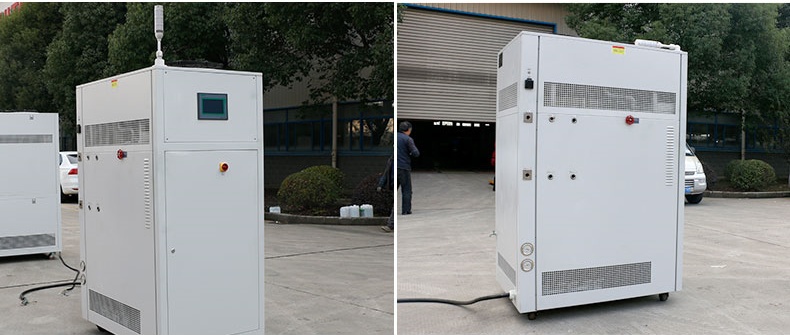

General equipment

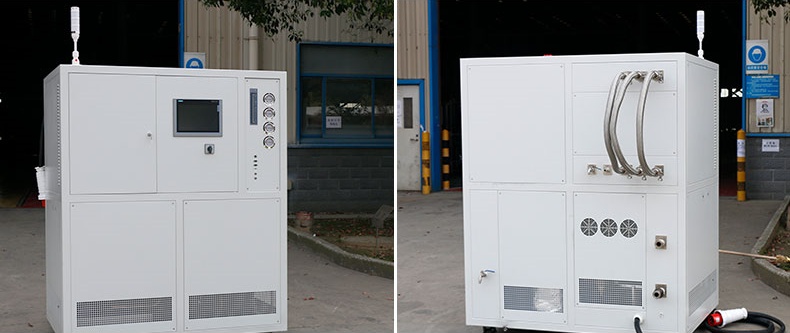

Multichannel equipment
Temperature range is -40℃~+100℃, which can be extended to +135℃ according to the actual situation, and the temperature control accuracy is plus or minus 0.5℃. The equipment can control the flow and pressure independently while controlling the temperature, and different customized solutions are required for simultaneous control.
The tested object is attached to a test platform adapter.
The inside of the part was cooled and heated by an aqueous solution of ethylene glycol.
The test component needs to go through a specific temperature profile and record changes in temperature.
Temperature variations typically range from -40 ℃to 100 ℃. (expandable to 150 ℃)
When performing a tolerance test, it usually takes an infinite loop.
Multi channel independent temperature control
The system adopts LNEYA PLC control, with simple menu navigation, a 7 inch color large screen, and comprehensive and multifunctional image display of important data information. The newly added safety measures ensure continuous unmanned operation. All relevant operating status data is continuously monitored and visualized on the touch screen. It supports independent control of one to many channels, and each group can be set independently.
Variable frequency regulation
The variable frequency pump can adjust the circulating liquid pressure and flow rate, achieving high-precision control of 5%~100% of the total range adjustment.
Client A
Client B
By using a variable frequency pump, the motor speed can be controlled at the appropriate value corresponding to the required pressure.
Temperature simulation for vehicle quality test: battery life test, fuel injector/motor test bench, airbag test, component test bench, etc. It can simulate the external environmental conditions in the climate chamber or replace the internal system, which can create the necessary actual temperature conditions for the test bench.
Motor and motor controller
Motor coroller durabilitytest, motor and motorcontroller bracket
Charge point test
On load charging experiment and charging communication interactive test
OBC/DC-DC
Model test, power test. Durability test
Power battery system
Battery pack charge and discharge test, fuel cell test

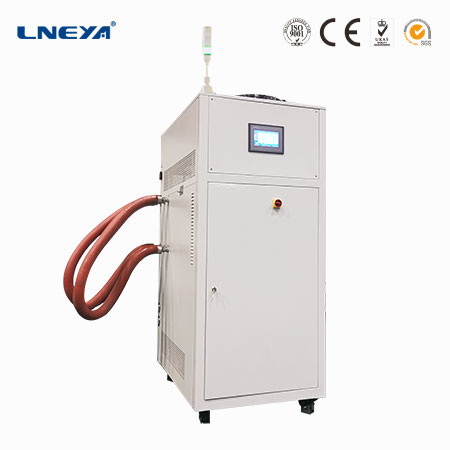

Recommended Products
