Liquid Cooling Chiller(Energy Storage)

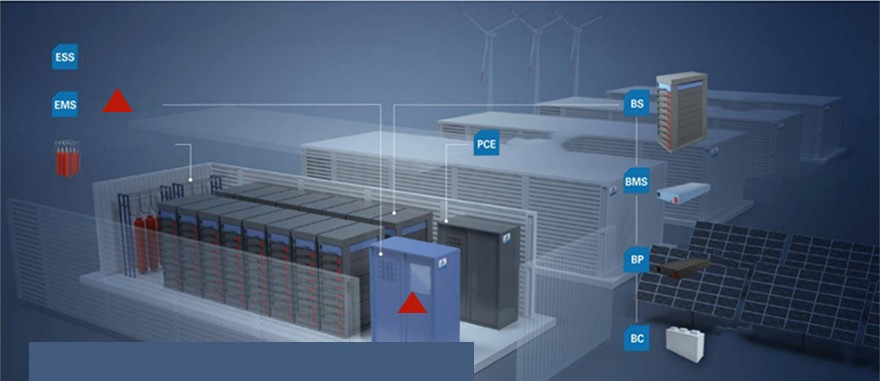

Energy storage battery thermal management system

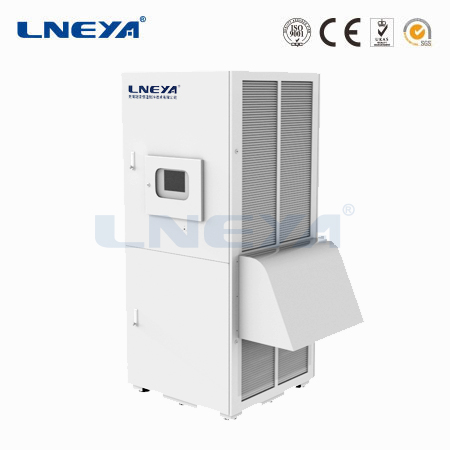

CNYL 45kW
  • Cooling power45KW
  • Temperture accuracy±0.5℃
  • Control SystemPLC
  • Power range380V 50HZ Choose 220V60HZ 460V 60HZ

Description
Parameters
Quotation

Efficient “nanny-style” temperature control and intelligent linkage with battery temperature

Ambient operating temperature range -45°C~55°C

Can be used below 3000 meters above sea level

Protection above IP50 can meet anti-corrosion requirements

Intelligent, multilingual color touch screen provides clear and comprehensive important data information

Real-time display of flow pressure data

Fully enclosed design of ethylene glycol antifreeze circulation system

Using compressor heating to prevent condenser frosting technology, the system has no PTC heater

Real-time operation and maintenance management of equipment through the Internet of Things platform

Suitable for single high current liquid cooling test

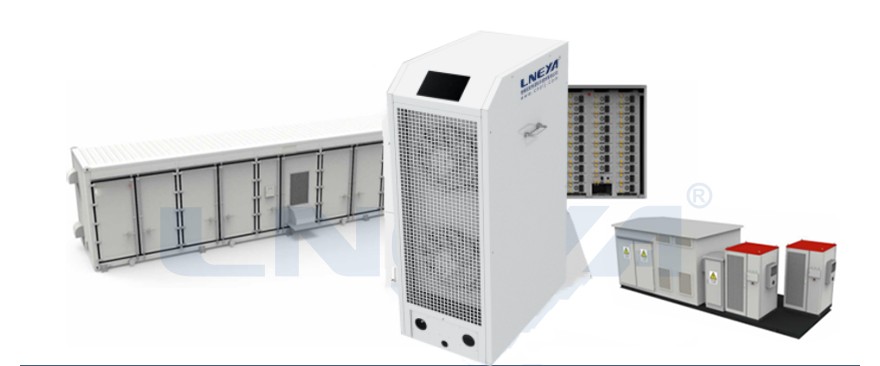

Applicable to energy storage modules, energy storage sub-box performance test

Suitable for performance testing of vehicle power supply products

Applicable to vehicle power supply large module, energy storage module, energy storage plug-in box test, suitable for vehicle power supply product performance test

Applicable to energy storage modules, energy storage sub-box performance test

Applicable to cycle test, the cooling method is liquid cooling mode

Applicable to cycle test, the cooling method is liquid cooling mode

Applicable to vehicle power supply, energy storage system test

Suitable for performance testing, the cooling method is liquid cooling mode

Applicable to vehicle power supply, energy storage system test

Suitable for performance testing of vehicle power supply products

Suitable for performance testing of R&D projects, prepared for cylindrical/other direct cooling projects

Model

CNYL -45~55

Cooling Capacity

45KW

Temperature Control Accuracy

±0.5℃  Real-time temperature record

Secondary Refrigerant

Ethylene glycol antifreeze, fully enclosed design of refrigerant circulation system

Refrigerant

R410A

Flow

300L/min~400L/min Set display history

Pressure Sensor Detection

Liquid outlet pressure, liquid inlet pressure, refrigeration system high and low pressure

Temperature Sensor Detection

Liquid outlet temperature, liquid inlet temperature, refrigeration system exhaust and suction temperature, condensation temperature

Liquid Level of Expansion Tank

Liquid level sensor real-time monitoring

Heating

Using compressor heating to prevent condenser frosting technology, the system has no PTC heater

Energy Consumption Display

The system has real-time energy consumption and cycle cumulative energy consumption display

Condenser

microchannel heat exchanger

Evaporator

Plate heat exchanger

Cooling Throttling

Electronic expansion valve

Low Pressure electrical

Schneider/Siemens

Display Screen

7 inch color touch screen

Control System

PLC

Communication

CAN

Network

Real-time operation and maintenance management of equipment through the Internet of Things platform

Ambient use temperature

-45℃~55℃

Safety Protection

With self-diagnosis function, phase sequence and phase failure protection, safety voltage protection, abnormal flow protection, high and low pressure protection of refrigeration system, exhaust and suction temperature protection, high and low liquid level protection, abnormal circulation pipeline pressure protection

Power

380V 50HZ Choose 220V60HZ   460V 60HZ

Shell Material

Cold-rolled sheet spray REL7035

Internal Piping

SUS304
