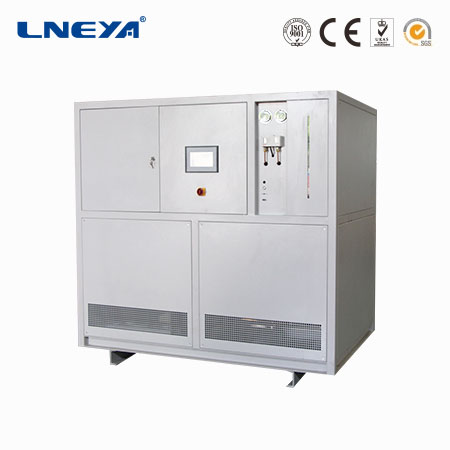

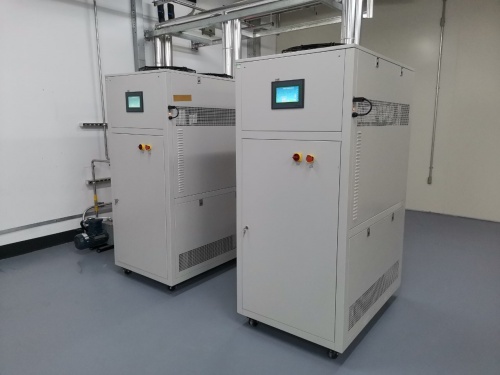

Single Fluid Cryogenic Water Chiller

LJ -45℃~-10℃

Cooling capacity @-20℃12kW~360kW
Expansion tank50L~400L
RefrigerantR404A/R507C
Weight800KG~5000KG
Place of OriginChina
Power range12kW~270kW

cryo chiller ultra low temperature chiller water cooled chiller

Consultation Price

Description

Parameters

ULTRA LOW TEMPERAATURE CHILLER

Pharmaceutical & chemical industry

single fluid low temperature refrigeration unit

Fast cooling and low cooling temperature

temperature control

-5~-150°C

cooling method

Water Cooling

LNEYA specializes in the production of single-fluid cryogenic chillers. The refrigeration temperature ranges from -150°C to -5°C, which can meet the needs of different refrigeration temperatures. The company developed a direct-cooled ultra-low temperature chiller, using international brand compressors Carrier, using automatic cascade refrigeration mode and mixed refrigerants, within 3 minutes can be refrigerated to minus 120°C.

Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water.

Widely used in chemical, pharmaceutical, biochemical and other industries in the field of low temperature reaction, refrigeration speed, safety and reliability.

Product’s Description

1.Temperature ranges from -5℃ ~ -150℃, can meet different temperature

2. Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK. Bitzer, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency

3. Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety.

4. DANFOSS electronic expansion valve, high precision control;

5. Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm;

6. Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water.

Widely used in high-tech industries such as petrochemical, pharmaceutical and medical, biochemical engineering, aerospace industry, semiconductor manufacturing, and university research institutes.

Cooling Method

Air cooling: Install a fan, according to the siteconditions, you can choose top exhaust or side exhaust
Water cooling: external cooling water has certain requirements for water quality, and the temperature control effect is relatively good.

Data Communication Interface

Standard PT100, USB, RS485, other analoginterface and contact signal Ethernetinterface, etc. can be selected

Application Cases

Distillation equipment, reactors, microchannels, semiconductors, mechanical equipment, etc.

Support PC remote control for distances up to 200 meters. Can be integrated into the client.

Model	LJ-6W	LJ-10W	LJ-15W	LJ-20W	LJ-30W	LJ-40W	LJ-60W	LJ-90W	LJ-120W	LJ-180W
Temperature Range	-45°C~ -10°C
Cooling Capacity At -35°C	6kw	10kw	15kw	20kw	30kw	40kw	60kw	90kw	120kw	180kw
Cooling Capacity At -35°C	5160Kcal/h	8600Kcal/h	12900Kcal/h	17200Kcal/h	25800Kcal/h	344000Kcal/h	51600Kcal/h	77400Kcal/h	103200Kcal/h	154800Kcal/h
Circulation Pump Info	6.6m³/h	9m³/h	15m³/h	15m³/h	25m³/h	25m³/h
Circulation Pump Info	2.5bar max	2.5bar max	2.5bar max	2.5bar max	2.5bar max	2.5bar max
Inlet&outlet connection size	DN-25 PN-10	DN-32 PN-10	DN-40 PN-10	DN-40 PN-10	DN-50 PN-10	DN-50 PN-10	DN-50 PN-10	DN-65 PN-10	DN-65 PN-10	DN-80 PN-10
Cooling Water at 30 degree	8m³/h	10m³/h	16m³/h	20m³/h	25m³/h	30m³/h	38m³/h	55m³/h	70m³/h	100m³/h
Cold Storage tank (optional)	100L	150L	230L	260L	300L	400L	600L	2200L	3000L	4000L
Expansion tank(standard)	50L	80L	150L	180L	200L	250L	400L	/	//
Compressor	Dorin semi-closed compressor					Dorin compressor/HANBELL、Fusheng、Bitzer screw compressor
Operation Panel	7-inch color touch screen display, temperature curve record
Control System	Standard: Single-chip micocomputer controller; Stepping control; Set temperature difference of refrigeration on & off PLC&Module
Closed Circulation System	The whole system is a full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature
Circulation Pump	LNEYA Mangetic Pump
Evaporator	Plate heat exchanger
Condenser	Casing type water-cooled condenser / tube-type water-cooled condenser
Intermediate heat exchanger	Plate heat exchanger

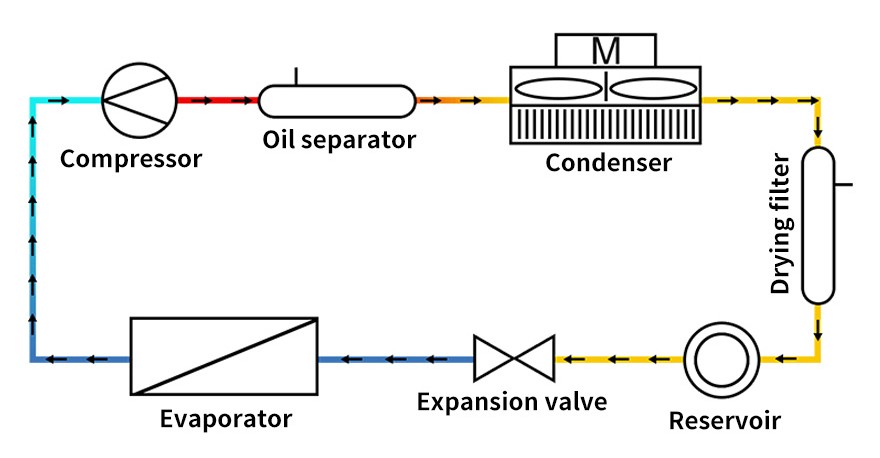

Refrigeration accessory	Oil separators, drying filters, expansion valves, refrigeration solenoid valves, pressure control, mirrors, etc. all use Emerson / Danfoss and other brands
Electric	AC contactors, intermediate relays, circuit breakers, thermal relays, etc. are Schneider / ABB brand
Refrigerant	R404A
Secondary refrigerant	No corrosive liquid, ethanol water, heat transfer oil etc.
Safety Protection	High pressure protect; water supply cut-off protection; over-current protection; leakage protection; sequential and phase failure protection; High temperature protection; Sensor Failure protection; Liquid low level protection etc. multi-safety protection
Level Indicator	Adopt glass liquid level indication
Piping material	Expansion tank, cold storage tank and circulation pipeline are all made of SUS304
Case material	Channel steel + square tube + cold rolled plate sealing plate spray 7035
Dimension cm	100150185	100150185	200145205	200145205	250145225	250145225	300160225	350160245	400160245	500200260
Power	14kW	17kW	25kW	34kW	52kW	65kW	100kW	127kW	167kW	247kW
dB	within 75dB		within 80 dB			within 90 dB
Weight （kg）	800	950	1100	1350	1500	1800	2400	3100	3600	5000
Optional	Optional outside touch screen display controller (separated), the communication line distance is 10 meter
Optional	Optional explosion-proof touch screen control system (ExdeIIBT4), the communication line distance is 15 meter
