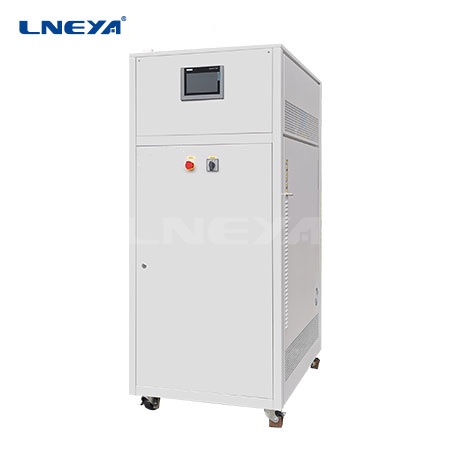

Industrial Chilled Water Chiller Circulator

LT -80℃~-20℃

Low Temperture Circulators

Cooling capacity0.2kW~6kW
Power range3.5kW~11.5kW
Liquid storage15L~60L
RefrigerantR404A/R508B
Weight185KG~470KG
Place of OriginChina

air cooled chiller cooling unit refrigerated circulator

Consultation Price

Description

Parameters

LOW TEMP. REFRIGERATION CIRCULATOR

Circulating refrigeration of ethylene glycol mixed with water mixture

After the medium enters the extraction tank, it must be closed,the sandwich is heated, and the refrigerant is turned on to reducethe heat source of the boiling tank, and the steam is cooled backto the tank to maintain circulation and temperature.

Product’s Description

1. Can use ethylene glycol mixed with water for circulating refrigeration, saving resources

2. Circulating pipeline design, prolong the use time of circulating water

3. Adopt brand compressor, cascade subcooling refrigeration technology

4. Dual Condensing High Efficiency System

5. Computer cascade temperature controller, temperature digital display, adjustment unit 0.1℃

6. Adopt supercooling technology to ensure temperature stability at low temperature

7. It can be set to turn on the compressor and turn off the compressor temperature difference

1、LCD color touch screen
2、Liquid level indicator, showing the position ofthe heat transfer medium
3、Heat transfer medium inlet and outlet, top out and bottom in
4、Pressure gauge, showingthe pressure ofthe refrigeration system
5、Cooling water inlet and outlet, top out and bottom in (water-cooled )
6、Communication interface (standard PT100,USB, RS485, optional Ethernetinterface, RS232, etc.)

Cooling Method

Air cooling: Install a fan, according to the siteconditions, you can choose top exhaust or side exhaust
Water cooling: external cooling water has certain requirements for water quality, and the temperature control effect is relatively good.

Data Communication Interface

Standard PT100, USB, RS485, other analoginterface and contact signal Ethernetinterface, etc. can be selected

Application Cases

Distillation equipment, reactors, microchannels, semiconductors, mechanical equipment, etc.

Microchannel Reactor	Glass Reactor	Jacket Reactor	Distillation System
Extraction System	Rotary Evaporator	University Research Institute	Aerospace Material Testing
Battery Pack Testing	Vehicle Testing	Semiconductor Production Process	Petrochemical Treatment

Support PC remote control for distances up to 200 meters. Can be integrated into the client.

Model		LT-8018N	LT-8030N	LT-8062N	LT-8090N	LT-80A1N	LT-80A2WN
Medium Temperature Range		-75℃～-20℃		-80℃～-20℃
Cooling Capacity	-60℃	0.4KW	0.8KW	1.6KW	2.1KW	4KW	6KW
	-75℃	0.2KW	0.5KW	0.9KW	1.2KW	2KW	3KW
Circulation Pump Flow Rate, Pressure (max)		20L/min 0.7BAR	20L/min 0.7BAR	35L/min 1BAR	35L/min 1BAR	75L/min 1BAR	75L/min 1BAR
Capacity of Liquid Storage		15L	20L	30L	35L	40L	60L
Compressor		Tecumseh, Dorin
Evaporator		Plate Heat Exchanger
Operation Panel		7-inch color touch screen shows setting temperature and measuring temperature, temperature curve record, data export excel-format
Safety Protection		Self-diagnosis function; freezer overload protection; high pressure switch;overload relay, thermal protection device etc. security protection function.
Refrigerant		R-404A/R23 mixed refrigerant
Connection Size		ZG1/2	ZG1/2	ZG3/4	ZG3/4	ZG1	ZG1
Product size(air-cooled)（cm)		5570175	5570175	6585185	7085185	7085185	80120185
Weight (air-cooled)		185kg	230kg	275kg	340kg	380kg	470kg
Power 50HZ max		AC220V 3.5kW	AC380V 4.5kW	AC380V 6.5kW	AC380V 8kW	AC380V 12kW	AC380V 14.5kW
Shell Material		Cold rolled sheet spray molding (standard color 7035)
Optional		Circulation pump 35L/min 2.5bar、50L/min 2.5bar、110L/min 2.5bar optional
Optional		Pressure ≤6 bar circulating pump
Optional		MODBUS RTU Protocol, RS 485 Interface
Optional		SUS304 Material
Optional Power		220V 60HZ three-phases，440-480V 60HZ three-phases
Remark		Can make the bigger capacity of liquid storage as required.
