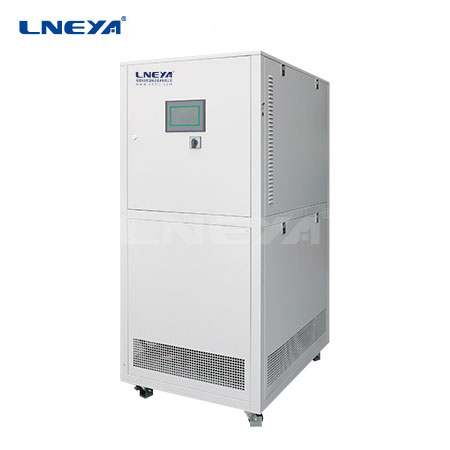

Low Temperature Air Cooling Chiller

LX -25℃~30℃

Low Temperture Circulators

Power range1.5kW~17kW
Cooling capacity0.8kW~30kW
Liquid storage15L~300L
RefrigerantR404A
Weight115KG~950KG
Place of OriginChina

air cooled chiller cooling unit refrigerated circulator

Consultation Price

Description

Parameters

LOW TEMPERATURE CIRCULATOR

TEMP RANGE -5°C~-105℃

Glycol-water mixture to carry out circulating refrigeration

Product’s Description

1. Can use ethylene glycol mixed with water for circulating refrigeration, saving resources

2. Circulating pipeline design, prolong the use time of circulating water

3. Adopt brand compressor, cascade subcooling refrigeration technology

4. Dual Condensing High Efficiency System

5. Computer cascade temperature controller, temperature digital display, adjustment unit 0.1℃

6. Adopt supercooling technology to ensure temperature stability at low temperature

7. It can be set to turn on the compressor and turn off the compressor temperature difference

1、LCD color touch screen
2、Liquid level indicator, showing the position ofthe heat transfer medium
3、Heat transfer medium inlet and outlet, top out and bottom in
4、Pressure gauge, showingthe pressure ofthe refrigeration system
5、Cooling water inlet and outlet, top out and bottom in (water-cooled )
6、Communication interface (standard PT100,USB, RS485, optional Ethernetinterface, RS232, etc.)

Cooling Method

Air cooling: Install a fan, according to the siteconditions, you can choose top exhaust or side exhaust
Water cooling: external cooling water has certain requirements for water quality, and the temperature control effect is relatively good.

Data Communication Interface

Standard PT100, USB, RS485, other analoginterface and contact signal Ethernetinterface, etc. can be selected

Application Cases

Distillation equipment, reactors, microchannels, semiconductors, mechanical equipment, etc.

Microchannel Reactor	Glass Reactor	Jacket Reactor	Distillation System
Extraction System	Rotary Evaporator	University Research Institute	Aerospace Material Testing
Battery Pack Testing	Vehicle Testing	Semiconductor Production Process	Petrochemical Treatment

Support PC remote control for distances up to 200 meters. Can be integrated into the client.

Model		LX-0250N	LX-0400N	LX-0700N	LX-1000N	LX-1450N	LX-2000N	LX-2600N	LX-3500N	LX-5000N
Medium Temperature Range		-25℃～30℃
Temp. Control and Dispaly		PLC multifunctional controller, control outlet temperature of water tank
Temp. Control Optional		Temperature feedback PT100 (inlet temperature, outlet temperature)
Cooling Capacity	0℃	1.5KW	2.4KW	4KW	7.5KW	10KW	15.5KW	20kw	26.5kw	38kw
	-10℃	1KW	1.5KW	2.7KW	6.3KW	8KW	12KW	15.5kw	21kw	30kw
	-20℃		0.8KW	1.5KW	3.5KW	5KW	7.3KW	10kw	13.5kw	20kw
Circulation Pump Flow Rate, Pressure (max)		20L/min	20L/min	35L/min	35L/min	75L/min	75L/min	110L/min	200L/min	250L/min
1.5BAR	1.5BAR	1.2BAR	1.2BAR	1.2BAR1.2	1.2BAR	1.2BAR	1.2BAR	1.2BAR	1.5BAR	1.5BAR
Capacity of Liquid Storage		15L	17L	25L	30L	40L	60L	80L	150L	300L
Compressor		Tecumseh		Emerson Copeland
Evaporator		Plate Heat Exchanger
Operation Panel		7-inch color touch screen shows setting temperature and measuring temperature, temperature curve record, data export excel-format
Safety Protection		Self-diagnosis function; freezer overload protection; high pressure switch;overload relay, thermal protection device etc. security protection function.
Refrigerant		R-404A/R507C
Connection Size		ZG1/2	ZG3/4			ZG1		ZG1 1/4	DN40 PN10
Product size（cm)		4070130	4070130	4570160	5570175	65185185	6585185	80120200	100150205	145250225
Weight (air-cooled)		115KG	145kg	180kg	225kg	290kg	340kg	400kg	650kg	950kg
Power （max ) 50hz		AC220V 1.5kW	AC220V 2.2kW	AC220V 2.5kW	AC380V 3.5kW	AC380V 4.5kW	AC380V 7kW	AC380V 9kW	AC380V 12kW	AC380V 21kW
Shell Material		Cold rolled sheet spray molding (standard color 7035)
Optional		SUS304 Material
Optional Power		220V 60HZ three-phases，460V 60HZ three-phases
