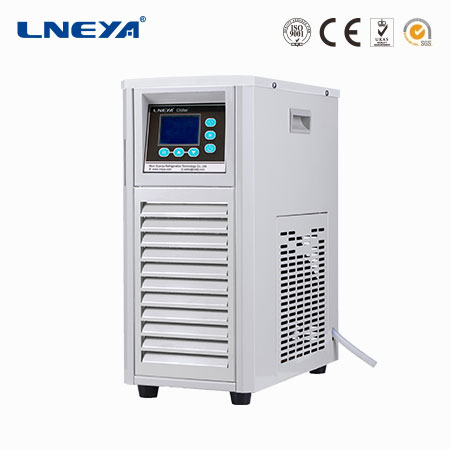

Compact Water Chiller

FL-800（-18℃~30℃）

Liquid storage volume3.5L
Cooling power0.35kW~0.9kW
Power range0.6kW
RefrigerantWater
Weight35kG

mini chiller normal temperature chiller water chiller

Used in low temperature conditions requiring chemical, biological and physical experiments.

REQUEST

Description

Parameters

SMALL LABORATORY CHILLER

Temperature range -18°C~30°C

Microcomputer controlaccurate temperature control

Designed for small laboratories, the cooling chiller FL-800 has a small footprint that saves lab space and can be placed directly on a bench or on the floor.

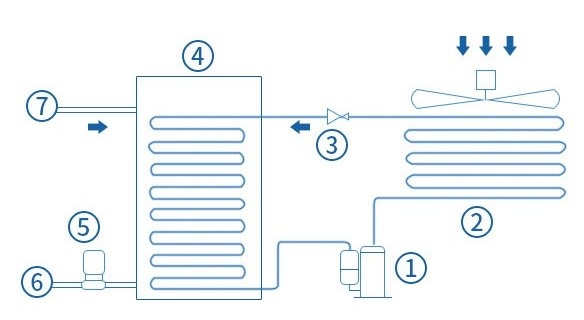

Working Principle

1、Compressor

2、Condenser

3、Expansion Valve

4、Evaporator

5、Circulating Pump

6、Forzen Water Outlet

7、Forzen Water Inlet

Widely used in low temperature conditions requiring chemical, biological and physical experiments at low temperatures.

It can be combined with the rotary evaporator, glass reactor and other instruments to proceed kinds of chemical reactions.

1) Compact design, small size and light weight, small footprint
2) Air-cooled design
3) Large LCD screen, button operation
4) The fully enclosed circulation system can effectively prevent the evaporation and pollution of the heat transfer medium and save resources.

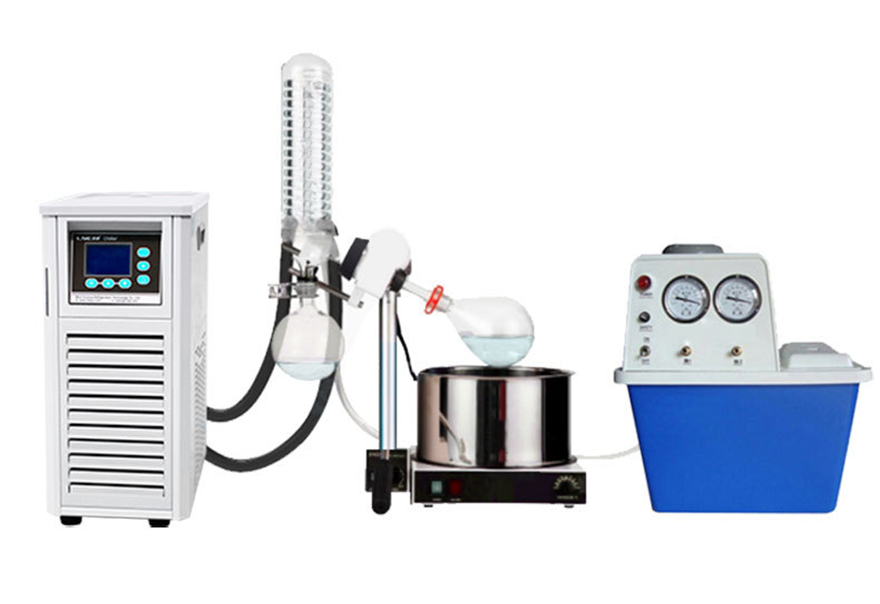

For laboratory rotary evaporator & Vacuum Pump

The image only shows the connection effect

Microchannel Reactor	Glass Reactor	Jacket Reactor	Distillation System
Extraction System	Rotary Evaporator	University Research Institute	Aerospace Material Testing
Battery Pack Testing	Vehicle Testing	Semiconductor Production Process	Petrochemical Treatment

Used for Laboratory, Semiconductor, Laster, Tool machine processing and other processes…

Model		FL-800
Medium Temperature Range		-18°C~30°C
Temp. Control		ASET multifunctional controller, control temperature of water tank, Customizable temperature control accuracy ±0.5℃
Tem. Feedback		Temperature feedback PT100
Cooling Capacity	20℃	0.9kW
	10℃	0.75kW
	-10℃	0.35kW
Circulation pump flow, pressure		10L/min 0.6BAR
Capacity of liquid storage		3.5L
Compressor		Embraco
Evaporator		Copper tube nickel plating
Operation panel		Display set temperature and measured temperature, touch key to operate input temperature
Safety Protection		Self-diagnosis function; freezer overload protection; high pressure switch;overload relay, thermal protection device etc. security protection function.
Refrigerant		R404A (Optional R448)
Connection Size		ZG1/2
Product size(cm)		234250
Weight		35kg
Power (max) 50HZ		AC220V 0.6KW
Shell Material		Cold rolled sheet spray molding (standard color 7035)
