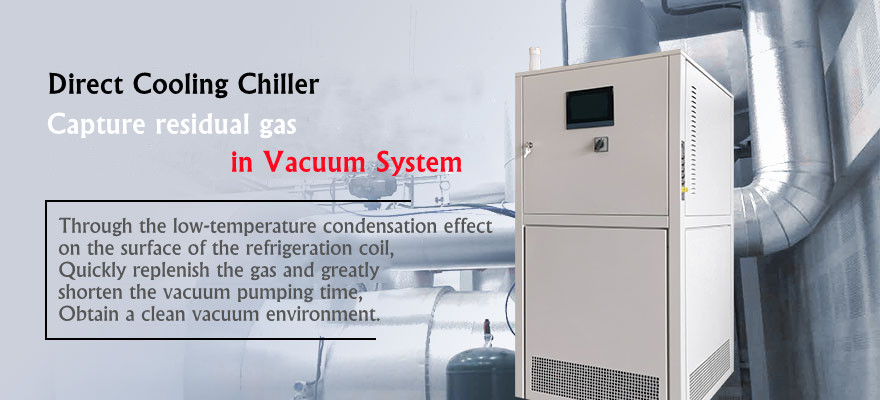

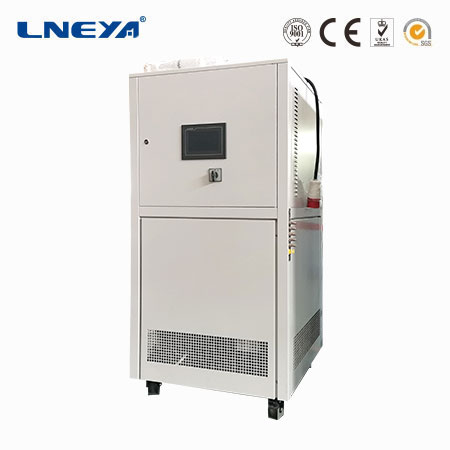

Diect Cooling Chiller-Gas Cooling

SLJ -110℃~-150℃

Description

Parameters

Applied to pharmaceutical, biochemical, freeze-drying.and other high-tech industries

Support PC remote control for distances up to 200 meters. Can be integrated into the client.

Model		SLJ-3W	SLJ-4W	SLJ-6W	SLJ-11W
Temperature Range		-110℃～-150℃
Cooling capacity	-120℃	3kW	4kW	6kW	11kW
	-135℃	2.1kW	2.8kW	4.2kW	7.7kW
Evaporator area		2m2	2.8m2	4m2	7.8m2
Connection size		Φ16球口	Φ16球口	Φ19球口	Φ22球口
Compressor		Dorin semi-closed compressor/Bitzer semi-closed compressor

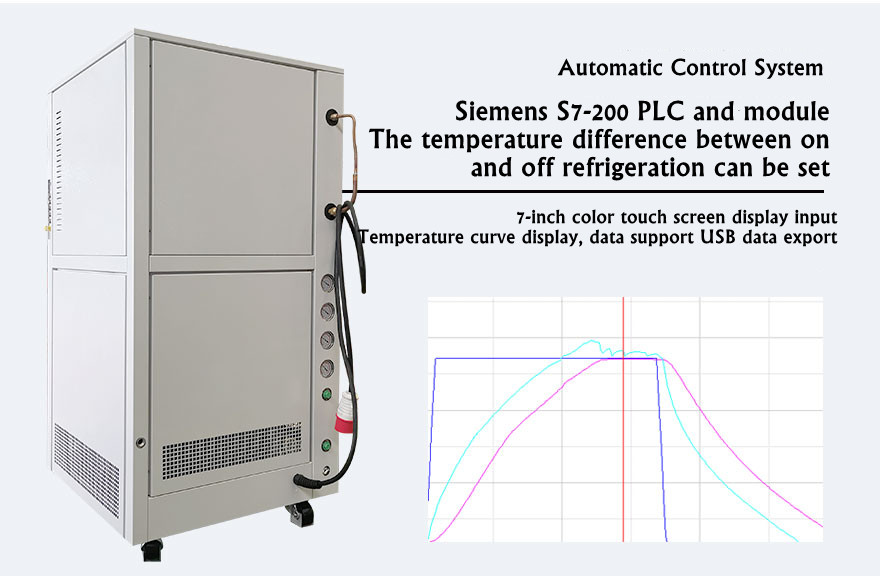

Operation Panel		7-inch color touch screen display, temperature curve record
Control System		PLC&Module，Set temperature difference of refrigeration on & off
Evaporator		Danfoss/KAORI plate heat exchanger
Condenser		Casing type water-cooled condenser / tube-type water-cooled condenser
Intermediate heat exchanger		Plate heat exchanger
Refrigeration accessory		Oil separators, drying filters, expansion valves, refrigeration solenoid valves, pressure control, mirrors, etc. all use Emerson / Danfoss and other brands
Electric		AC contactors, intermediate relays, circuit breakers, thermal relays, etc. are Schneider / ABB brand
Refrigerant		R404A /R508B/R14/R50 Mixed Refrigerant
Safety Protection		High pressure protect; water supply cut-off protection; over-current protection; leakage protection; sequential and phase failure protection; High temperature protection; Sensor Failure protection; Liquid low level protection etc. multi-safety protection
Piping material		Copper tube
Case material		Cold rolled sheet spray 7035
Cooling Water at 20 degree		3m³/h	4m³/h	6m³/h	10m³/h
Power		380V50HZ 12kW	380V50HZ 16kW	380V50HZ 24kW	380V50HZ 36kW
Dimension (cm)		7575175	7575175	100195205	300160230
Weight （kg）		350kg	400kg	600kg	950kg
dB		within 75 dB		within 80 dB
