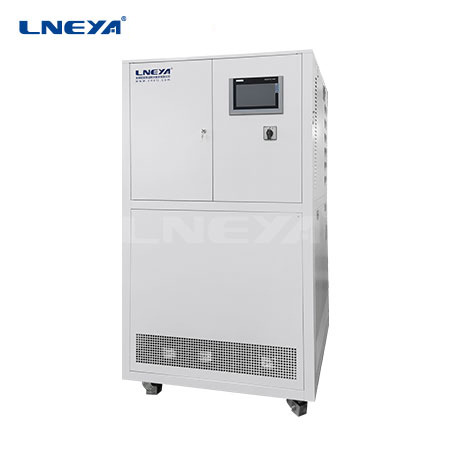

Laboratory Heater Chiller Unit Combo

SUNDI -80℃~250℃

Heating Power3kW~80kW
Cooling capacity0.3kW~80kW
Power range7.5kW~150kW
Medium accuracy±0.5℃~±1℃
Material accuracy±1℃
RefrigerantR404A/R508B
Weight240KG~2850KG

Dynamic temperature control SUNDI

Consultation Price

Description

Parameters

Product’s Description

● Working temperatures from -120°C to +350°C
● Previously unachievable performance
●Intelligent temperature control
● Maximum process stability and reproducibility
● Adop plate heat exchager, Pipeline heating, the fastest heating and cooling rates.
● High cooling power from 0.5 to 1200kW
● Large temperature range without fluid change
● Closed system, extend thermal fluid lifetime
● 7-inch, 10-inch color TFT touch screen display
● Comprehensive warning and safety functions
● Rapid cooling down from high temperature (from 300 °C)
● Use magnetic drive pump, solve the circulation pump leakage

Working Principle

Displays Various Information：

1. Displays all the kind of process control temperatures.
2. Shows the liquid level of the heat conducting medium in the expansion vessel.
3. Shows indication for refrigeration system working.
4. Shows indication for heater working.
5. Shows indication for circulation pump working.
6. Displays the temp. control ( materials temp. control pattern, heat conducting medium temp. control ).
7. The temp. upper limit, lower limit control can be set.
8. The temp. difference between jacket & reactor material can be set.
9. Shows the alarm to add the liquid when it is empty.
10. The refrigeration compressor can be set to operate manuallyor automatically.

Application Cases

Microchannel Reactor	Glass Reactor	Jacket Reactor	Distillation System
Extraction System	Rotary Evaporator	University Research Institute	Aerospace Material Testing
Battery Pack Testing	Vehicle Testing	Semiconductor Production Process	Petrochemical Treatment

Support PC remote control for distances up to 200 meters. Can be integrated into the client.

Model		SUNDI-925W	SUNDI-935W	SUNDI-955W	SUNDI-975W	SUNDI-9A10W	SUNDI-9A15W	SUNDI-9A25W	SUNDI-9A38W	SUNDI-9A60W	SUNDI-9A80W
Temp. range		-90℃～+250℃（the system add pressure 3bar)
Control Mode		Feedback PID + Our special dynamic control calculation, PLC controller
Temp. control		Process temp. control and jacket temp. control model
Temp. difference		Set or control the temperature difference between jacket oil and raw material process
Program Editor		10 programs, each program can edit 40 steps.
Communication Portocol		MODBUS RTU Protocol,RS485 interface
Material temp. feedback		PT100 OR 4～20mA or communication（normal: PT100)
Temp. feedback		The temp. of three points: the inlet and outlet of equipment, reactor material temp.(external temp. sensor)
Medium temp. acccuracy		±0.5℃								±1℃
Material temp. accuracy		±1℃
Heating power kW		2.5	3.5	5.5	7.5	10	15	25	38	60	80
Cooling capacity kW at	250℃	2.5	3.5	5.5	7.5	10	15	25	38	60	80
	0℃	2.5	3.5	5.5	7.5	10	15	25	38	60	80
	-40℃	2	2.8	5	6	8	12	20	31	48	64
	-60℃	1.1	1.9	2.8	3.2	4.2	6	10	16	24	32
	-80℃	0.35	0.5	0.8	1.2	1.6	2.1	3.5	6	11	15
	-85℃	0.2	0.3	0.5	0.7	0.85	1.3	1.9	3.5	6	8
Circulation pump max L/min bar		20	35	35	50	60	110	150	200	400	400
Circulation pump max L/min bar		2	2	2	2	2.5	2.5	2.5	2.5	2.5	2.5
Pump		LNEYA magnetic drive pump							German magnetic drive pump
Compressor		Tecumseh closed compressor		Dorin semi-closed compressor
Expansion valve		Emerson thermal expansion valve/Emerson electronic expansion valve/danfoss thermal expansion valve.
Evaporator		DANFOSS/KAORI Plate heat exchanger
Operation Panel		7-inch touch screen，show temp curve\EXCEL data output
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay,thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature.
Refrigerant		R404A/R23/R14 mixture，optional: R125/R23/R14 mixture
Connection size		G3/4	G3/4	G3/4	G1	G1	DN32 PN10	DN32 PN10	DN40 PN10	DN50 PN10	DN50 PN10
Water-cooled type W(cooling water@20℃)		1100L/H 1.5bar~4bar	1900L/H 1.5bar~4bar	2400L/H 1.5bar~4bar	3200L/H 1.5bar~4bar	4000L/H 1.5bar~4bar	8m³/H 1.5bar~4bar	12m³/H 1.5bar~4bar	20m³/H 1.5bar~4bar	30m³/H 1.5bar~4bar	40m³/H 1.5bar~4bar
Dimension cm		55100175	4585130	55100175	55100175	70100175	100150185	205145205	205145205	245145225	300160225
Weight kg		260	295	365	570	680	950	1400	1750	2400	3150
Power 380V 50HZ		8kW	11kW	16kW	21kW	27kW	38kW	54kW	79kW	120kW	170kW
