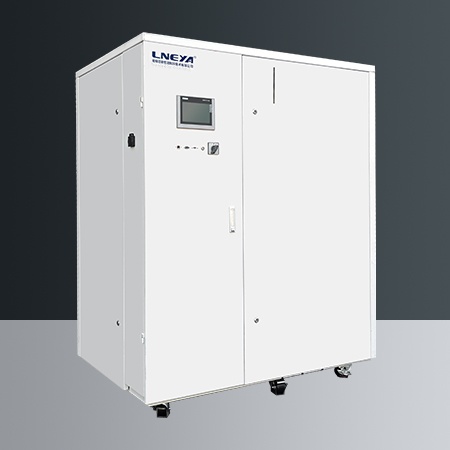

Data Center Liquid Cooling Chiller/CDU

ZLFQ 5℃~35℃

Power range1kW~6kW
Temp Control Accuracy±0.2℃/±0.5℃
Cooling Capacity（MAX）15kW~500kW
Chiller TypeWater-cooled
Place of OriginChina

cdu data center cooling data center liquid cooling

Description

Use liquid cooling plate heat exchange to cool the main heat source inside the server and reduce the use of air cooling systems.

Liquid-cooled CDU provides coolant circulation for cold plates that are in direct contact with server heating components.

The coolant distribution unit of our LNEYA can be said to be a liquid-to-liquid type, which greatly reduces the ratio of high loss of coolant in the past, and has high safety and reliability.

Fengliu structure
Heat dissipation up to 12kW
PUE≤1.2
Plug-in frame design
Hot and cold aisle isolation
The heat dissipation is as high as 15kW, which can quickly complete the construction of edge computer rooms and the transformation of old computer rooms. Annual OUE≤1.2, heat exchange increased by 10%.

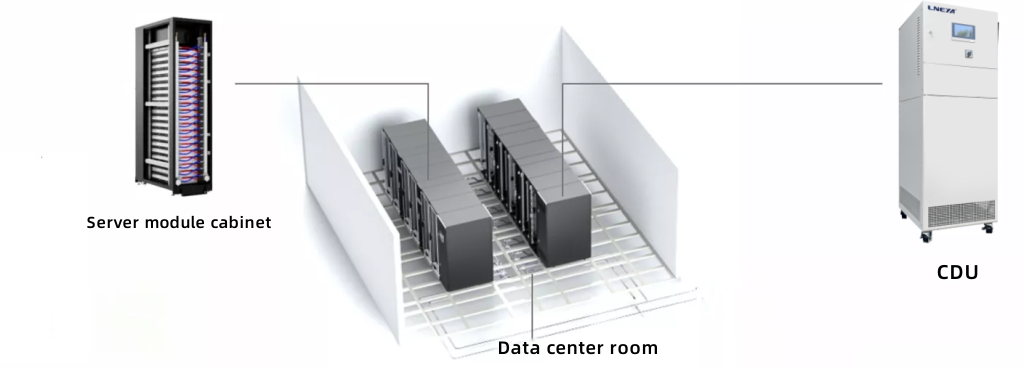

CDU will become the mainstream thermal solution in the data center. In general, cooling systems with radiators, fans, air conditioning units, etc. are considered insufficient for CPUs over 300W. To continue normal operation of the 300-1000W high-power CPU and improve computing and processing efficiency, it is necessary to properly handle the heat through the CDU.

Cold Plate Liquid Cooled

Air-liquid structure,

heat dissipation up to 15KW

Cabinet Liquid Cooled

Liquid cooling cycle,

heat dissipation up to 300KW

High cooling performance is not the only advantage of the CDU: Compared with air-cooled units, its major advantage is that it consumes less power and has less loss of liquid cooling media.

Cold Plate Liquid Cooling CDU-15kW

Model	ZLFQ-15	ZLFQ-25		ZLFQ-50		ZLFQ-75		ZLFQ-100			ZLFQ-150
Temp Range	Cooling Water Temperature+5℃～35℃
Cooling Water	5℃~30℃ Adopt Siemens/Honeywell regulating valve to control cooling water flow
Temp Control Accuracy	±0.2℃							±0.5℃
Flow Control	10～25L/min	25～50L/min		40～110L/min		70～150L/min		150～250L/min			200～400L/min
	The flow control is adjusted by frequency converter, the precision ±0.3L/min
Cooling Capacity（MAX）	15kW		25kW		50kW		75kW		100kW	150kW
Storage Volume	15L		30L		60L		100L		150L	200L
Brine	Water, silicone oil, fluorinated liquid, ethylene glycol aqueous solution, etc.
Controller	PLC, fuzzy PID control algorithm, with cascade control algorithm
Temp Control	Heat transfer medium outlet temperature control mode, with cascade control algorithm
Letter of agreement	Ethernet interface TCP/IP protocol RS485 interface modbus RTU protocol
Device Internal Temperature Feedback	Equipment heat transfer medium outlet temperature, medium inlet temperature, cooling water temperature
Tank Level	Import and export pressure sensor detection, cooling water pressure detection
Medium Pipeline	SUS304
Heat Exchanger	Plate heat exchanger, special attention: need to use clean factory water
Operation Panel	LNEYA customized 7-inch color touch screen, temperature curve display\EXCEL data export
Security	With self-diagnosis function; phase sequence and phase failure protector; pressure protection, overload relay, thermal protection device and other safety protection functions.
In and out interface size	ZG3/4		ZG1		ZG1		DN32		DN40	DN50
Cooling water interface	ZG3/4		ZG1		DN40		DN50		DN50	DN65
Cooling Method	Water-cooled, the factory water temperature is lower than the minimum temperature provided by the equipment by more than 3°C, and the water temperature fluctuation is ≤3°C
Cooling Water Flow 7～20℃	2.5m³/h		4m³/h		8m³/h		13m³/h		17m³/h	25m³/h
Power 380V 50HZ	1kW		1.5kW		3kW		4kW		5kW	6kW
Shell Material	Cold-rolled

Cabinet-type liquid cooling CDU-300kW

Model	ZLFQ-200	ZLFQ-250	ZLFQ-300	ZLFQ-400	ZLFQ-500
Temp Range	Cooling Water Temperature+5℃～35℃
Temp Control Accuracy	±0.5℃
Flow Control	15～30m³/h	20～35m³/h	25～40m³/h	30～60m³/h	40～70m³/h
	Flow control is adjusted by frequency converter
Cooling Capacity（MAX）	200kW	250kW	300kW	400kW	500kW
Storage Volume	250L	300L	600L	1000L	1200L
Cooling Method	Heat exchange between factory service water and brine, and brine provides cooling capacity for heating equipment
Brine	Water, silicone oil, fluorinated liquid, ethylene glycol aqueous solution, etc.
Controller	PLC, fuzzy PID control algorithm, with cascade control algorithm
Temp Control	Heat transfer medium outlet temperature control mode
Letter of agreement	Ethernet interface TCP/IP protocol RS485 interface modbus RTU protocol
Device Internal Temperature Feedback	Equipment heat transfer medium outlet temperature, medium inlet temperature, cooling water temperature
Tank Level	Pressure sensor real-time monitoring
Medium Pipeline	SUS304
System Pressure	Using the pressure sensor to detect and display on the touch screen
Heat Exchanger	Plate heat exchanger, special attention: need to use clean factory water
Operation Panel	LNEYA customized 7-inch color touch screen, temperature curve display\EXCEL data export
Security	With self-diagnosis function; phase sequence and phase failure protector; pressure protection, overload relay, thermal protection device and other safety protection functions.
In and out interface size	DN65	DN65	DN65	DN80	DN80
Cooling water interface	DN80	DN80	DN100	DN100	DN125
Cooling Method	Water-cooled, the factory water temperature is lower than the minimum temperature provided by the equipment by more than 3°C, and the water temperature fluctuation is ≤3°C

Principle

Cooling water enters the unit and exchanges heat with the thermal conductivity medium, taking away the heat of the thermal conductivity medium and reaching the predetermined temperature for use. It can automatically adjust frequency conversion according to system pressure, temperature, and flow rate.

Mainly Used For:

5G Base Station
Internet Data Center
Supercomputing Center
Financial Data Center
Research Institutions
Medical Industry
